QT10-15 fully automatic auto hydraulic fly ash cement concrete hollow block paver block brick making machine for sale

  • 1 - 1 Sets
    $35,000.00
  • 2 - 2 Sets
    $34,000.00
  • 3 - 3 Sets
    $33,000.00
  • >=4 Sets
    $32,000.00
Model Number:
QT10-15
Power:
37KW
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 15 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, japan, malaysia, Australia, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, uzbekistan, Tajikistan
Showroom Location:
none
Condition:
New
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
CEmENT
Processing:
Brick Production Line
Method:
Hydraulic Pressure
Automatic:
YES
Capacity:
16800 PCS/DAY
Place of Origin:
Shandong, China
Brand Name:
FULANG
Voltage:
180-440V
Dimension(L*W*H):
3510*2310*2935
Certification:
CE,ISO
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Easy to operate
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
2 years
Core Components:
PLC, PRESSURE VESSEL, engine, GEAR, MOTOR, pump, Bearing, Gearbox
PORT:
qingdao
motor:
siemens abb
oem:
allow
oversize:
3510*2310*2935
steel:
Q235
weight:
9.8T
mixer:
js750
viberation force:
100kn
machine type:
hollow brick machine
Packaging & Delivery
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 15 To be negotiated
Video Description
Product Description

■ Main feature QTF10-15 automatic concrete cement block making machine

QTF10-15 is a full automatic brick machine production line, its shape design is reasonable, the production efficiency is high. It have following features:
1.Material and welding
All material and spare parts selected according to international CE standard, Carbon dioxide protection will assure whole line stable running.
2. Electric control system
We selected original Mitsubishi PLC combine with independent machine control system to assure stable and high-efficiency working status.
3.Switches and motor
Switched will use Japan Omron or France Schneider, motor will use Siemens or ABB band.
4.Hydraulic system
The machine adopting the advanced hydraulic molding technology, it can assure the block machine have stable and high-efficiency working status, and the blocks produced are of better quality,larger density and higher strength.
5.Block mould
Our block moulds are made of 16# manganese steel.Besides the good raw material, precise line cutting technology and 900℃ carburizing heat treatment technology are all adopted in the process of brick moulds production.Then the mould size error can be controlled within 0.002mm . The surface layer of the brick moulds get higher hardness (achieving HRC54-58) and better wear resistance.
6. Vibration system
The machine adopts the special technology to optimize the vibration shaft, so that the proportion of vibration is covered in the whole surface range, so the product quality is greatly improved and the noise is effectively reduced. The machine's unique fixed platform design forms can improve the molding speed and dimensional accuracy.

Main technical parameters
Dimension of host machine
3500*2300*2930mm
Host machine power
37KW
Weight of host machine
9.8T
VIbratioon force
100KN
Molding area
1196*880mm
Models of mixer
JS750
Water consumption
10-20T/Day
Froming period
15-20S
The size of the pallet
1300*900*30mm
Workshop
1260㎡
The block mold is customizable and replaceable to produce different kinds of blocks according to your requirement.
①hollow block

② paver block

③ curbstone
Theoretical production capacity
Size(L*W*H)
Pcs/Mould
Pcs/Hr
Pcs/8Hr
400*100*200mm
20
3600-4200
28800-33600
400*150*200mm
14
2520-2940
20160-23520
400*200*200mm
10
1800-2100
14400-16800
400*250*200mm
8
1440-1680
11520-13440
230*110*70mm
42
7500-8800
60000-70400
Paver:200*100*60mm
35
6300
50400
Paver:200*163*60mm
20
3600
28800
Whole The Line

The whole production line mainly includes batching machine,cement silo,conveyor belt machine, QTF10-15 host machine,brick conveyor and automatic stacker.you can choose suitable accessory according to your requirements.


QTF10-15 Host Machine

Dimension of host machine: 3500*2300*2930mm
Host machine power: 37KW
Weight of host machine : 9.8T
VIbratioon force : 100KN
Molding area: 1196*880mm
Froming period: 15-20S
Workshop: 260㎡


JS750 Mixer

Output capacity: 750L
Feeding capacity: 1200L
Pump motor power: 1.1KW
Maximum productivity: 37.5m³/h
Hopper improve speed: 18m/min
Whole machine weight: 5500kgs
Unloading material height: 1600mm

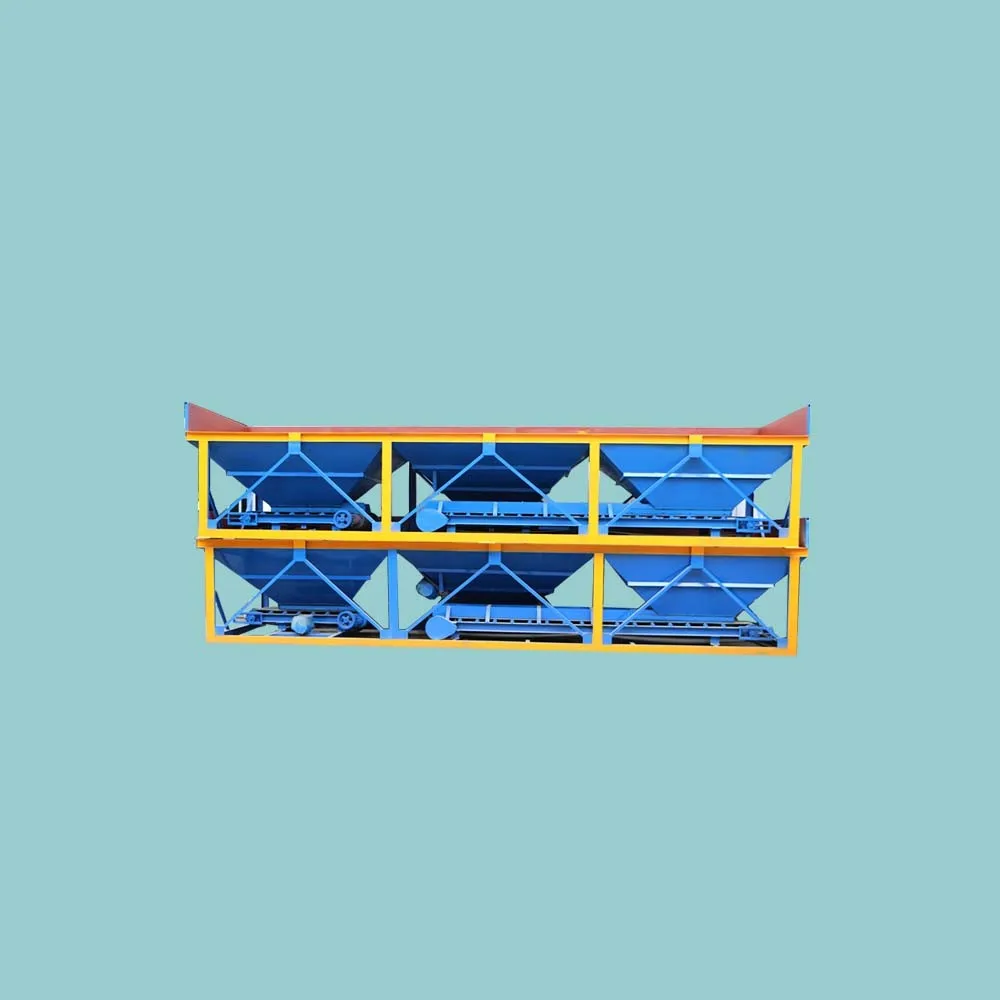

PL1200 Batching Machine

Capacity of storage hopper: 3*3m³
Capacity of measuring hopper: 1200L
Productive capacity: 60m³/h
Max.measuring: 3000kgs
Total power: 12KW
Total machine weight: 4100kgs
Batching categories: 3
Batching cycle: 40S

Related Products
Block Sample

QTF10-15 concrete brick making machine can produce various hollow blocks,solid blocks and pavers by changing moulds. The following bricks are some common brick types.Also we can customize brick moulds for you based on your requirements.

Installation Abroad
Exhibition
Company & Customers

Our Company

FULANG Machinery Group Co.,Ltd .is a Chinese manufacturer of dedicated machinery for construction blocks and panels.Our company offers complete production lines for premium building components such as the autoclaved sand -lime brick, autoclaved aerated concrete brick,and autoclaved aerated concern/autoclaved lightweight concrete panel.Additional,we provide various types of pressure vessels and block-making machines.By choosing FULANG,customers can enjoy professional benefits with our dedicated services for design,install,layout planning,technology transfer,and production guidance.

Customers visiting

With 20 years development ,our products have been sold to more than 80 countries.Till now, about 1200 customers have visited our factory.Also we have engineers stay abroad to help you install the machines and training your workers at your side.
